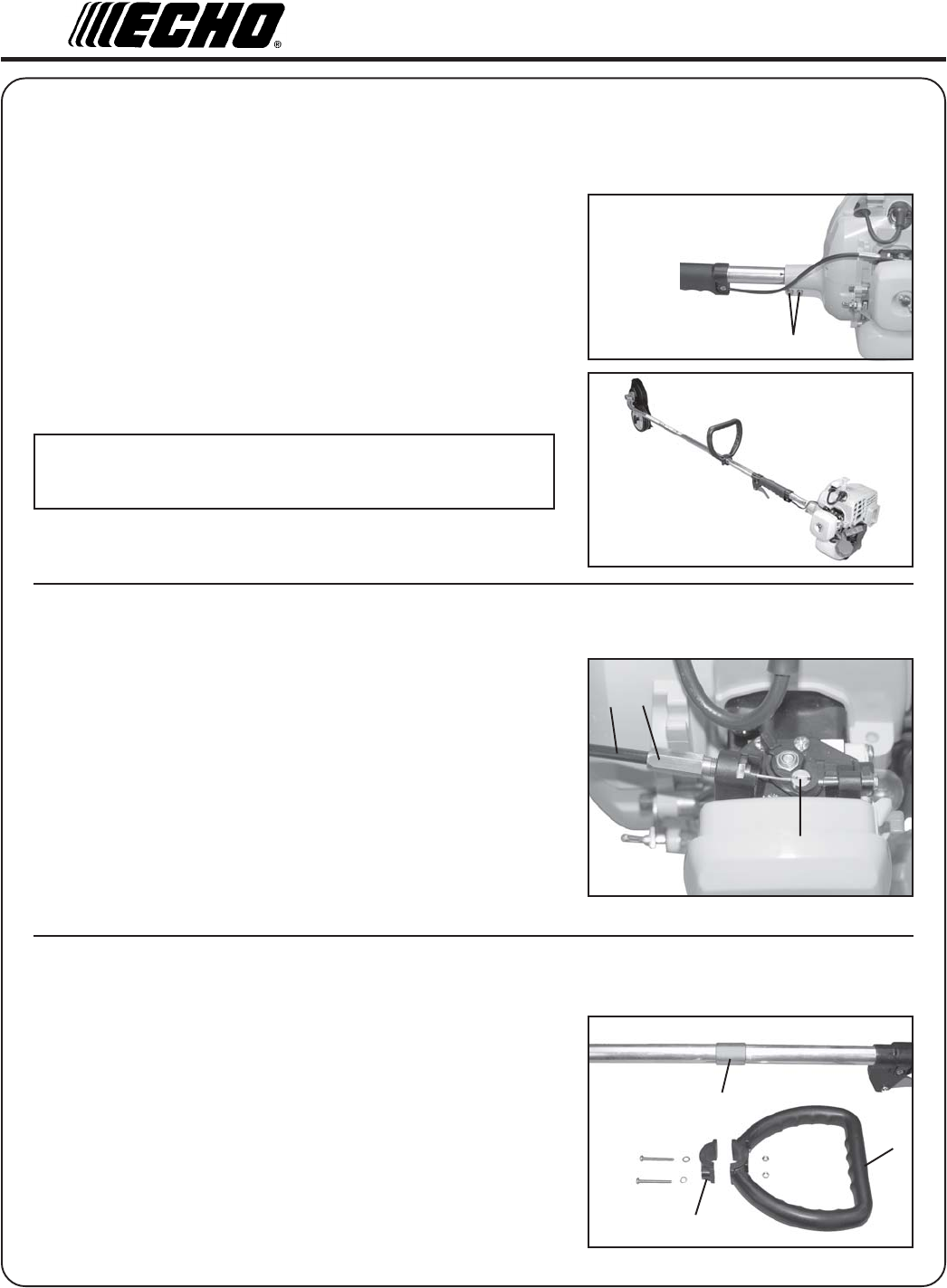

ASSEMBLY

DRIVE

SHAFT/POWER HEAD

Tools Required: 8 x 10 mm Spanner Wrench

Parts Required: Power Head, Drive Shaft Assembly

1. Stand engine on a level surface.

2. Loosen the two bolts (A) at drive shaft end of engine.

3. Carefully fit drive shaft assembly to engine, making sure that

inner drive shaft engages into clutch mount.

NOTE

Rotate the drive shaft housing until edger housing is in line with the

engine.

4. Tighten bolts (A).

THROTTLE LINKAGE

1. Place throttle linkage (B) through adjustment fixture (C) and install

wire end into large carburetor throttle swivel hole (D). Check

throttle for freedom of movement and that wide open throttle / low

idle extremes are adjusted properly. The throttle linkage must be

adjusted by moving the adjustment fixture (C). Consult with your

Echo Dealer for correct adjustment procedure.

FRONT HANDLE

Tools Required: Cross-Head Screwdriver

1. Loosely assemble front handle (A) and bracket (B) over collar (C)

on drive shaft.

2. Position front handle in comfortable operating position and tighten

screws.
